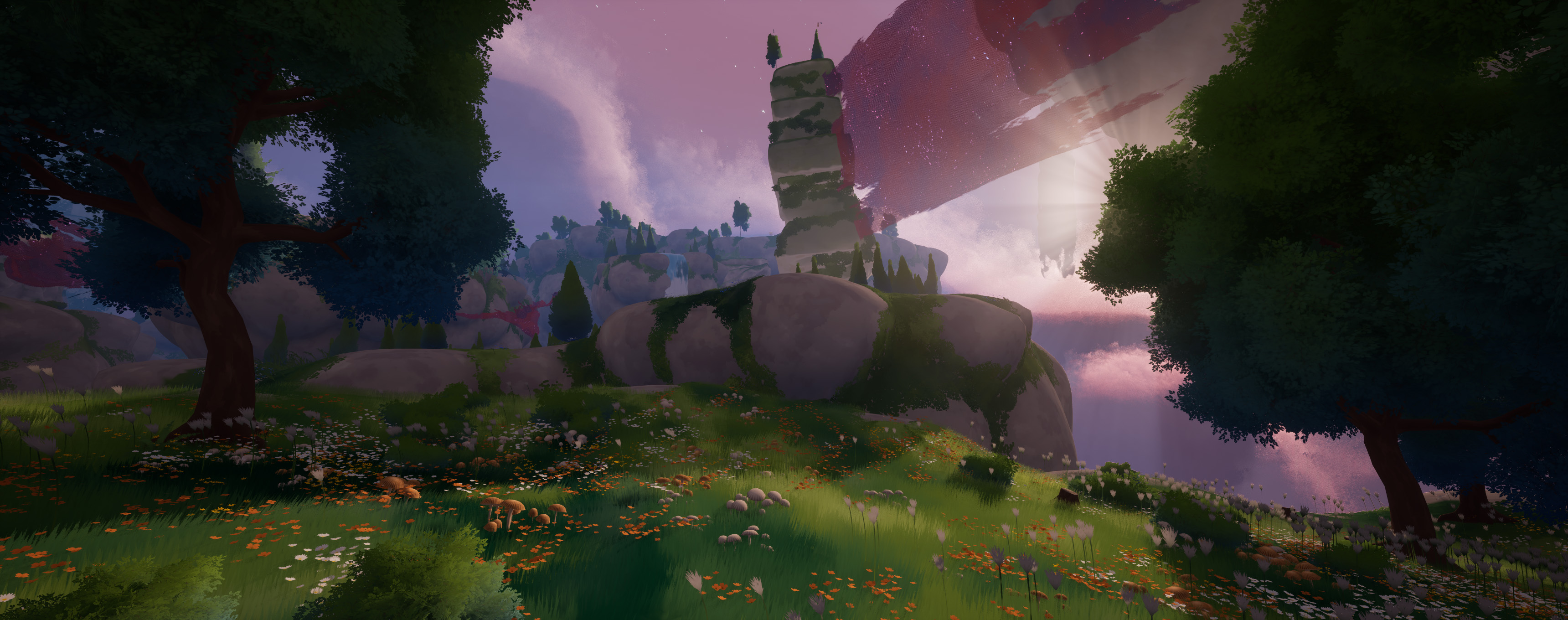

Stylized Art Direction

I started this long-term side project to build an entire game's art direction by myself, inspired by the Ghibli style
To get there, I worked on shading, modeling, texturing, lighting, and R&D across a wide range of assets

---

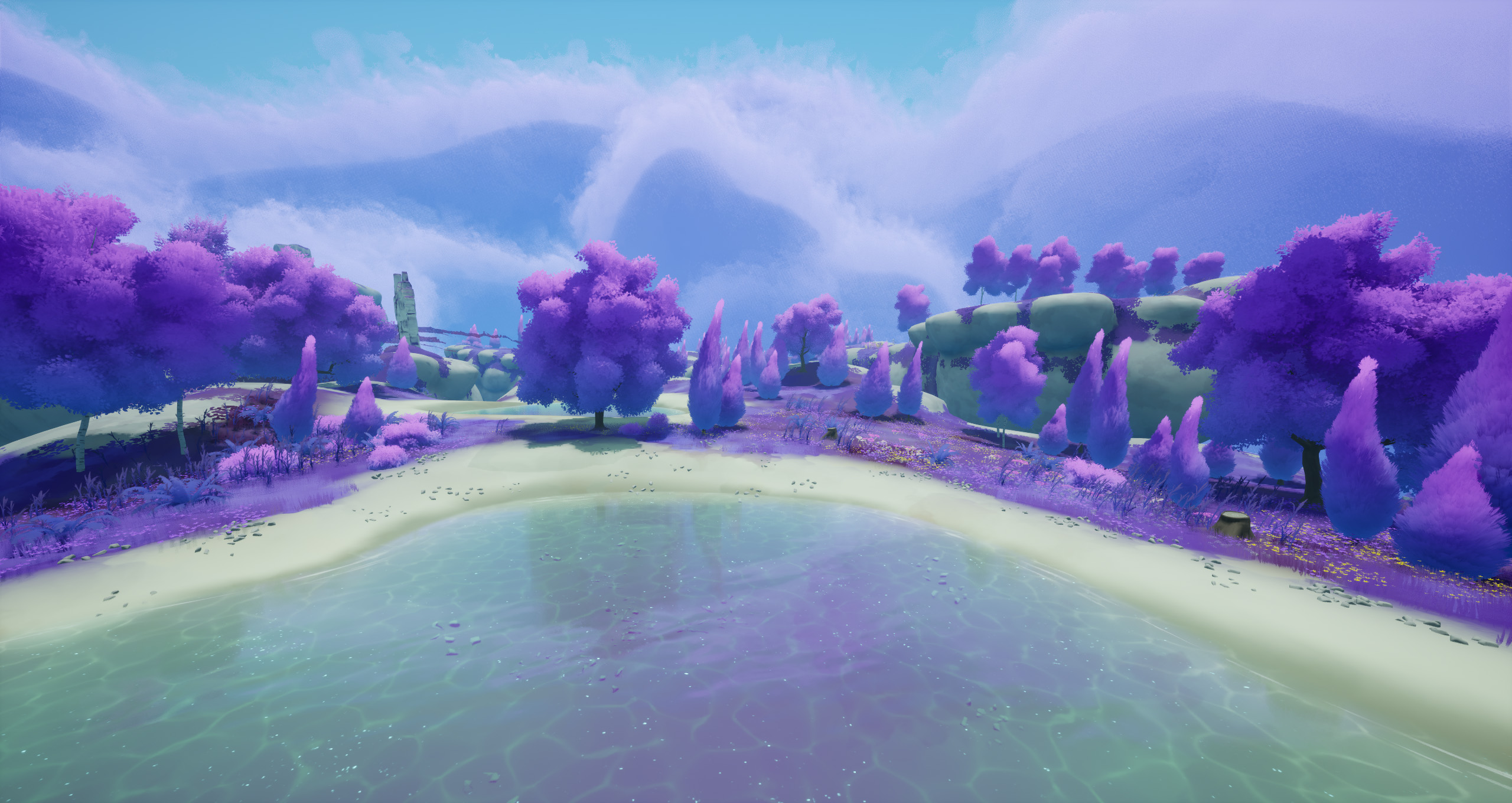

Gradient-Based

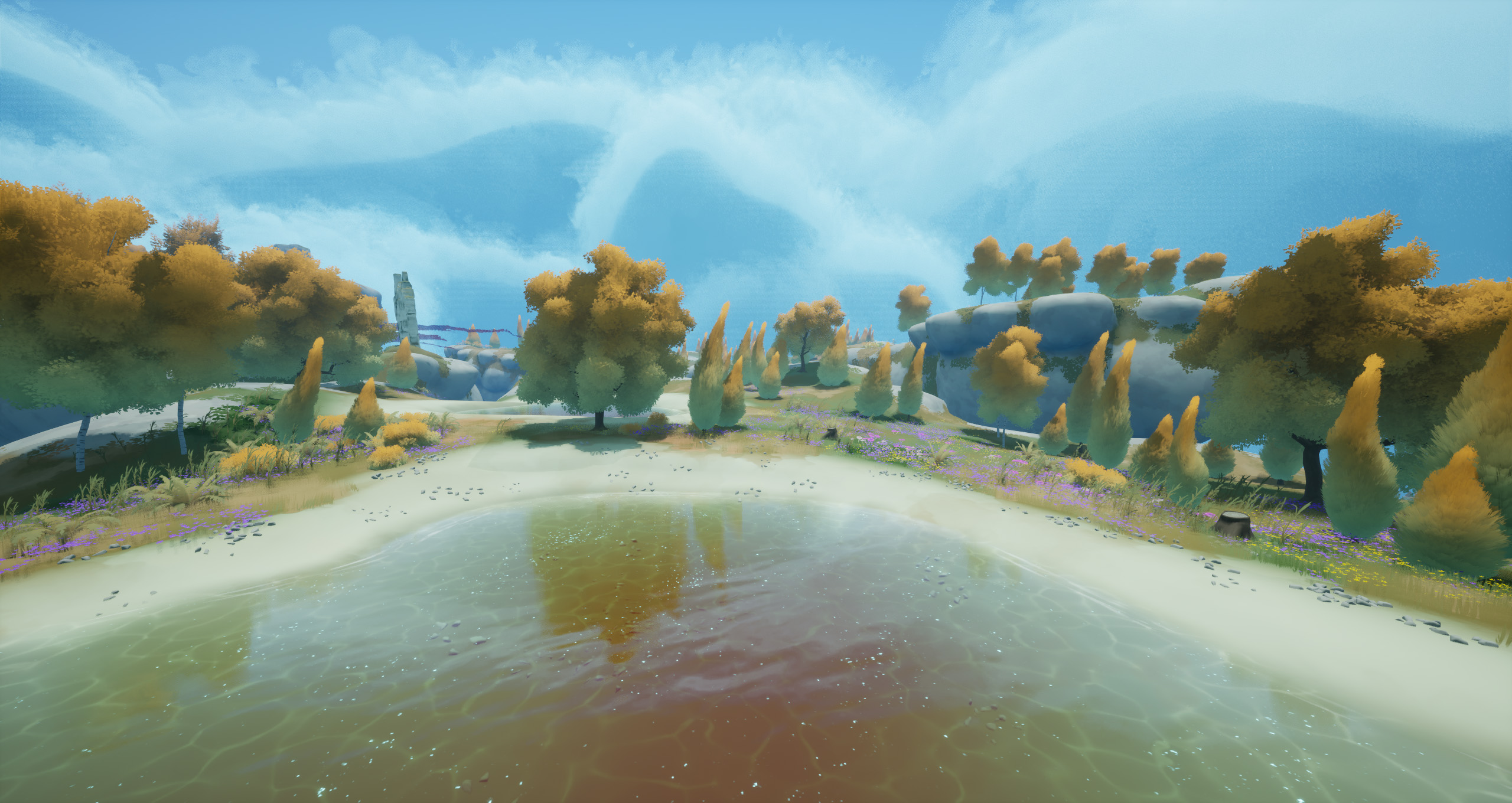

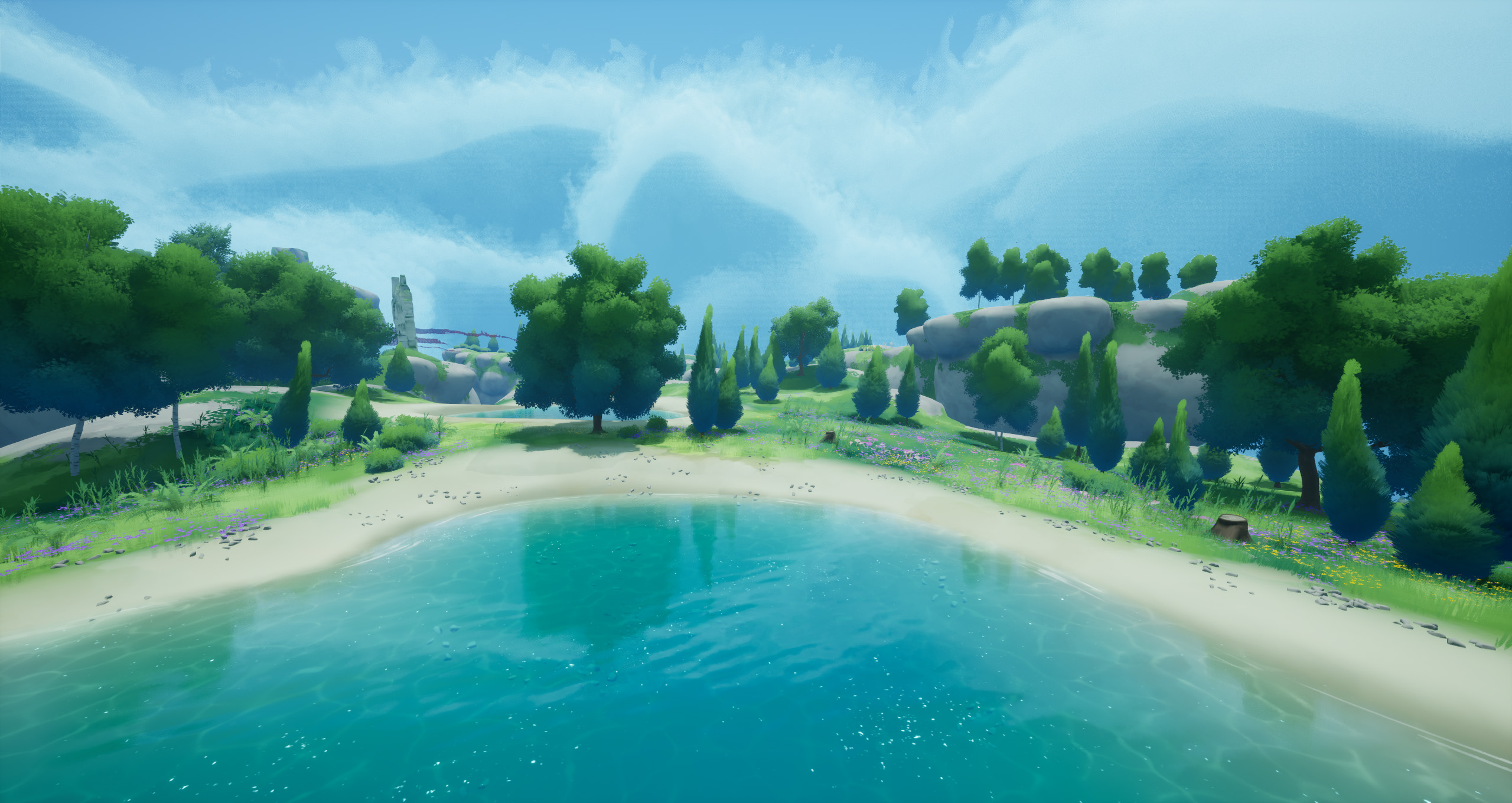

Most textures are grayscale, with gradients applied through material instances to create new biomes easily while reducing memory usage

---

Water

The water uses the SingleLayerWater shading model, as it provides lower-cost translucency and lighting results than a traditional translucent material
It is made of multiple layers: glitter, coastal foam, caustics, and refraction

---

Vegetation

Here are all the different vegetation assets and how they were made:

• Bushes (SpeedTree then Houdini processed)
  • 3 different shader designs
• Ferns (SpeedTree then Houdini processed)
  • 4 meshes and 5 leaf texture variations

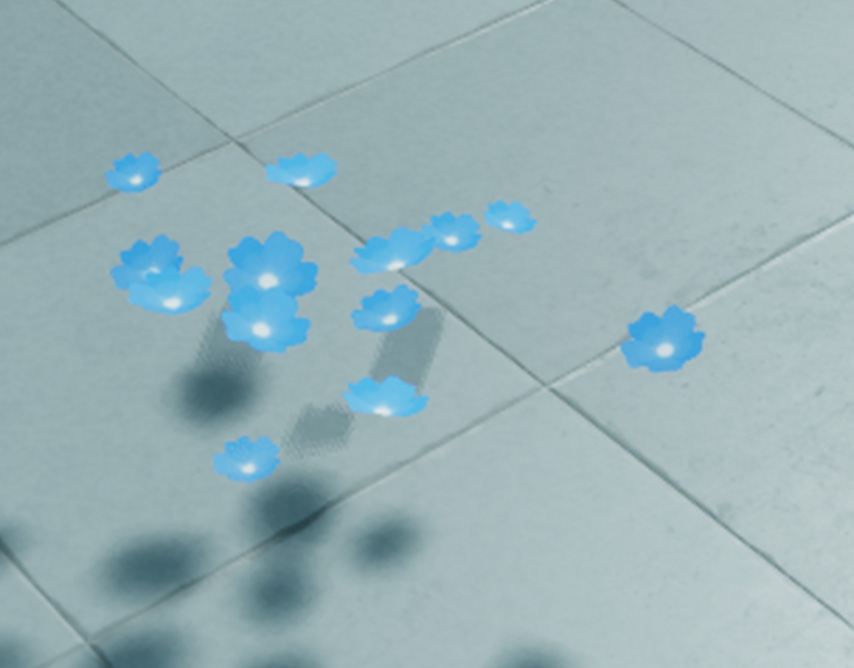

• Flowers (Houdini)

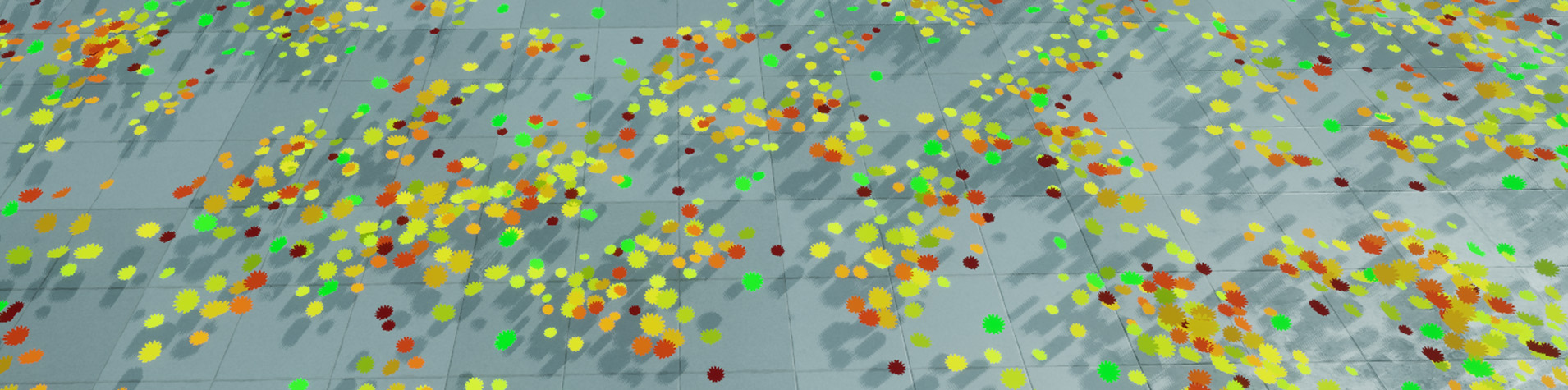

  • 6 different mesh and texture variations, vertex color pivot-baked
• Grass & Ivy (Blender)

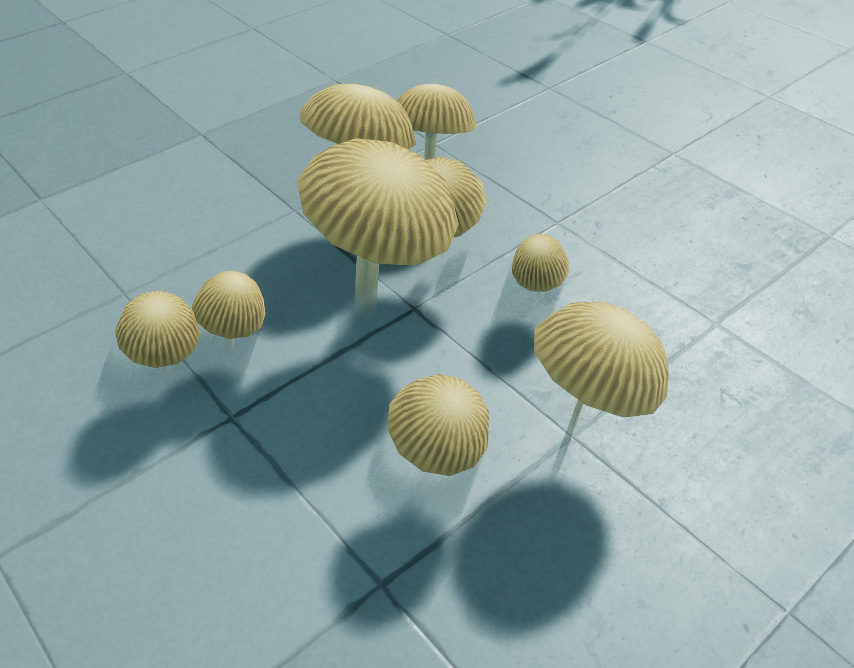

• Mushrooms (Blender then Houdini)

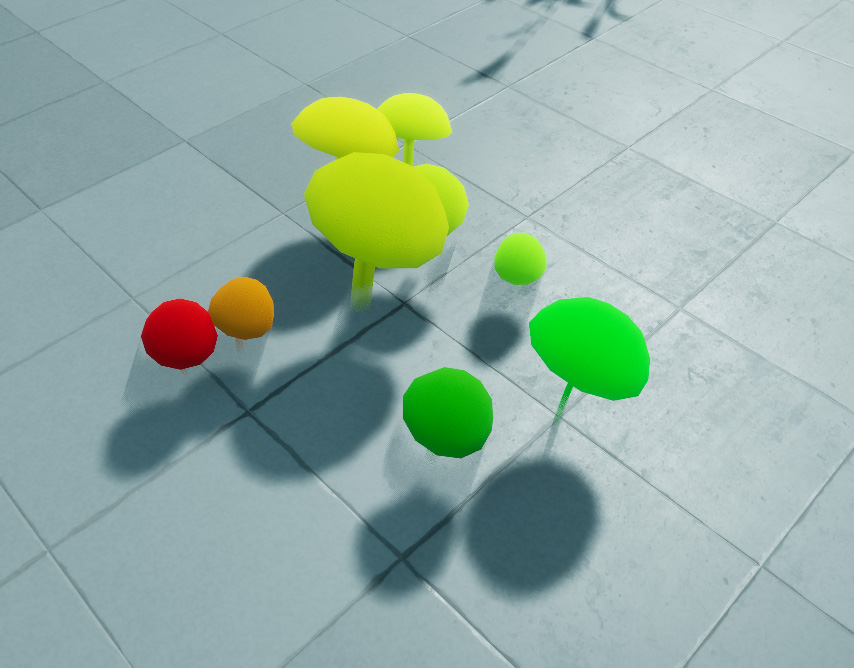

  • 6 variations, vertex color pivot-baked
• Stumps (SpeedTree)
• Trees (SpeedTree then Houdini processed)
  • 3 Cypress, 3 Birch, 3 Conifers, 3 Oak
  • each one has its own octahedral impostor texture
• Vertical Plants (SpeedTree & Houdini processed)
  • 1 Reed, 3 Elephant Grass, 3 Wheat, wheat is vertex color pivot-baked

But also some non-vegetation assets that include:

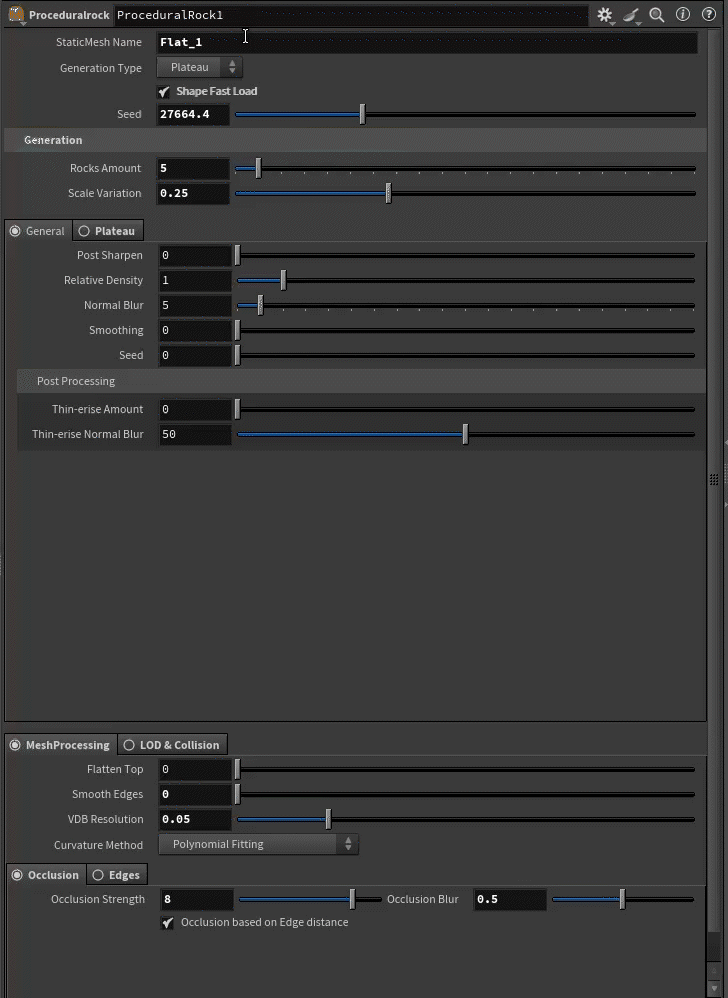

• Rocks (Houdini)
• Ruins (base model by a friend Jeremy Ozeroglu then Houdini processed)

Vegetation Interaction

All ground-based foliage is derived from a master shader that can be influenced by a character-based render target with various factors
The actual render target is an RG 8-bit texture, which could be reduced further in resolution

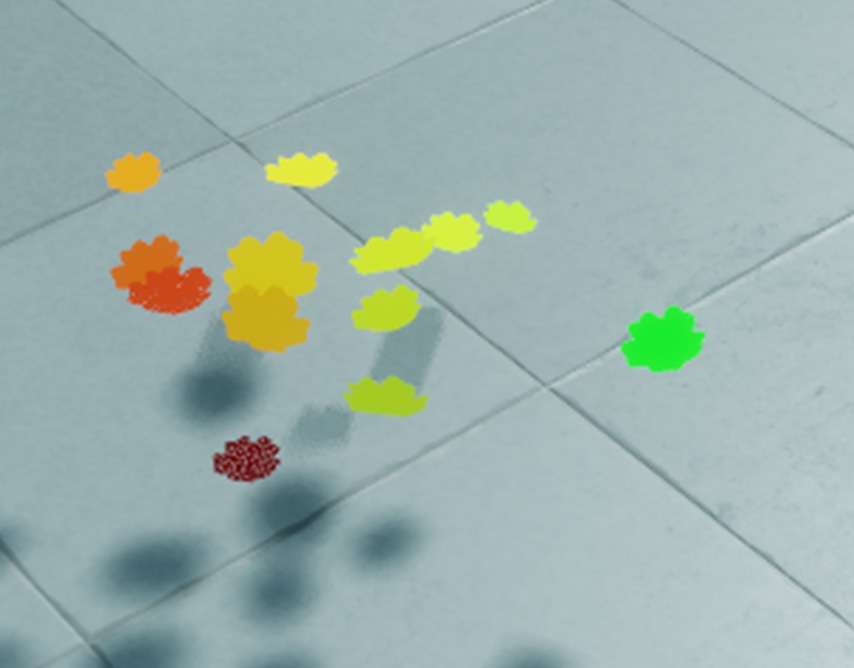

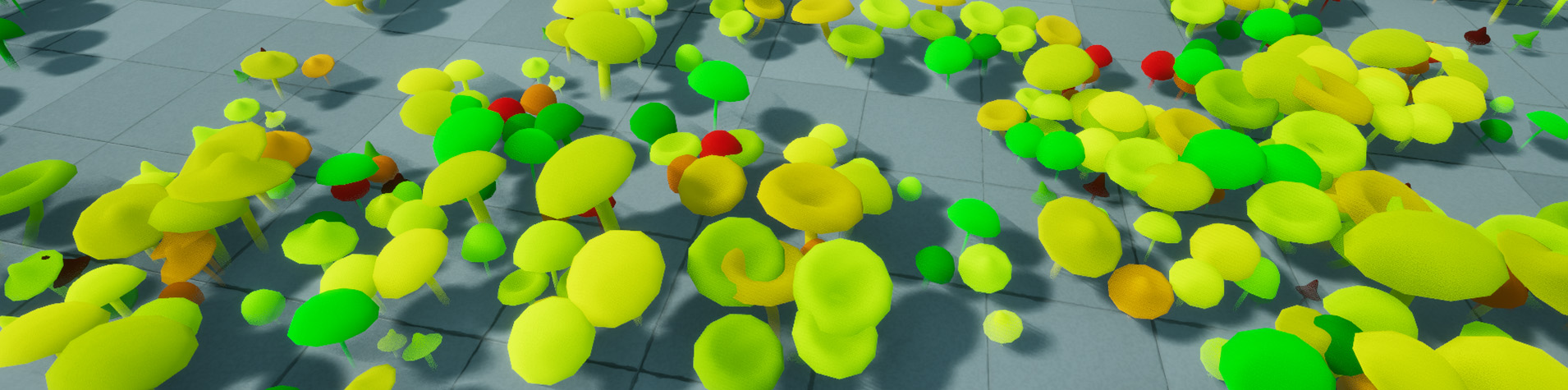

Some of the vegetation like Grass, Reed or Elephant Grass are bending based on their instance pivot point and for vegetation like Mushrooms, Wheat or Flowers they also have their local pivot point baked in the mesh data for an accurate world position offset

---

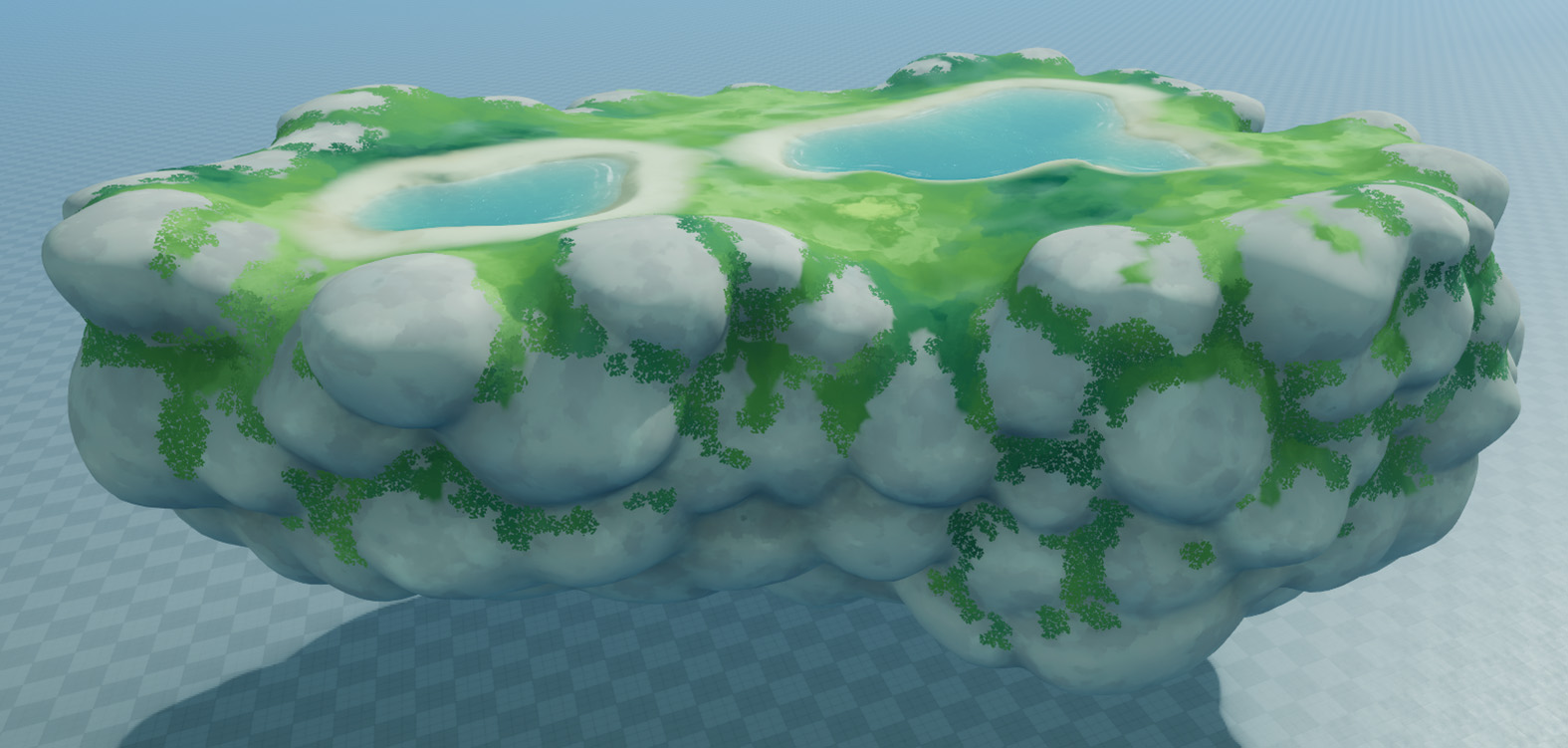

Floating Island

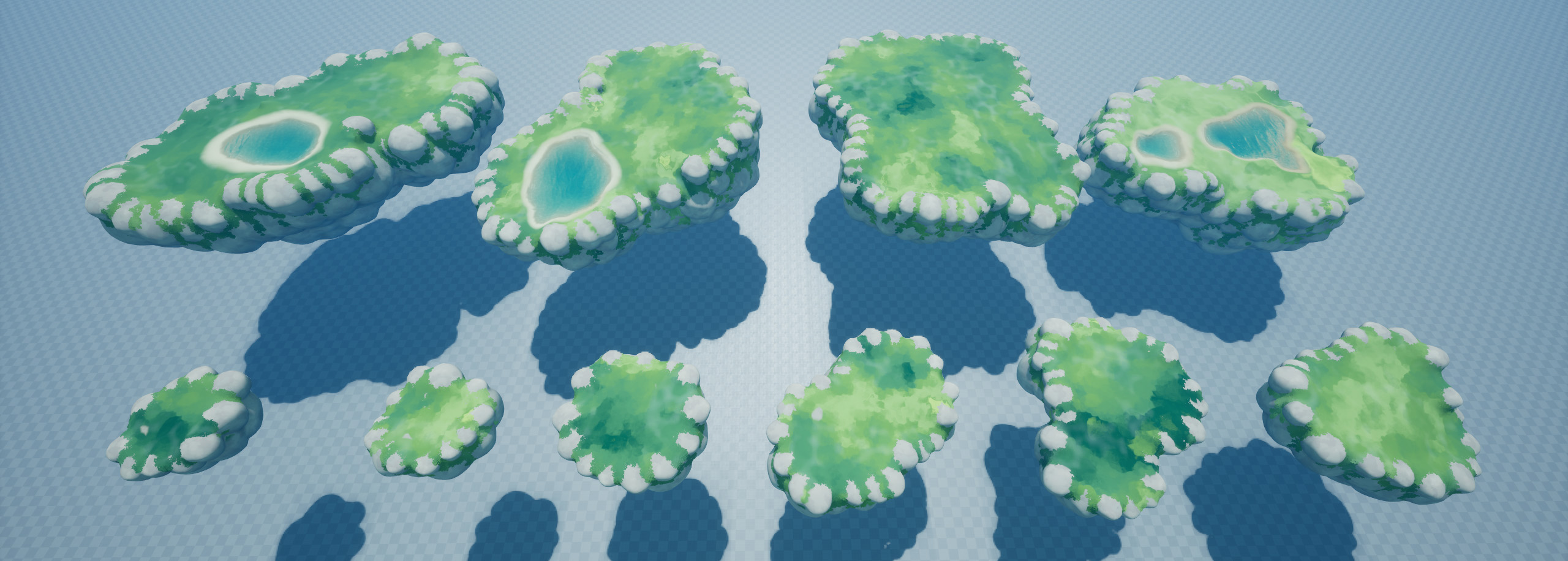

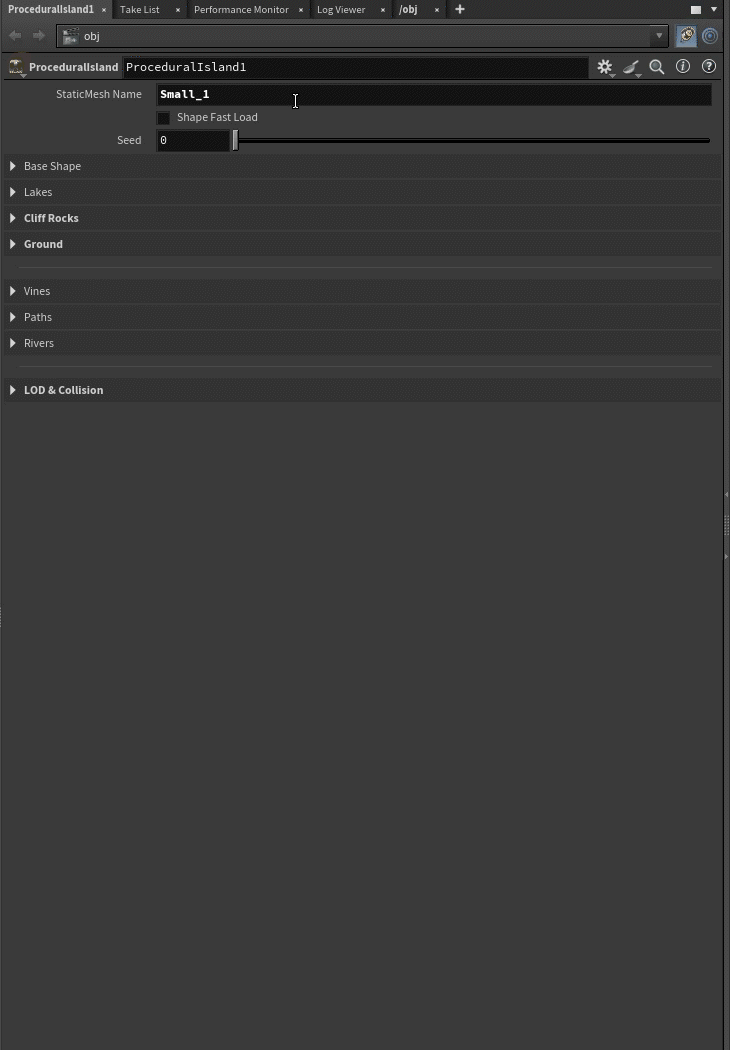

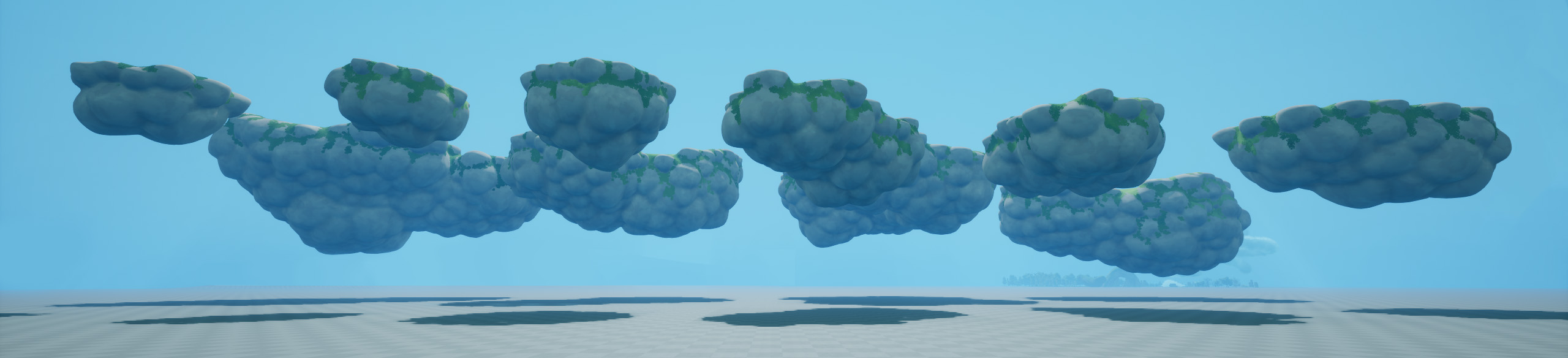

These islands were entirely generated from Houdini and include LODs, collision, and ivy vegetation instances on the edges to help with blending

I had to find a way to scatter vegetation easily on every mesh, so I used Procedural Foliage Spawner, which can mask scattered vegetation based on vertex color

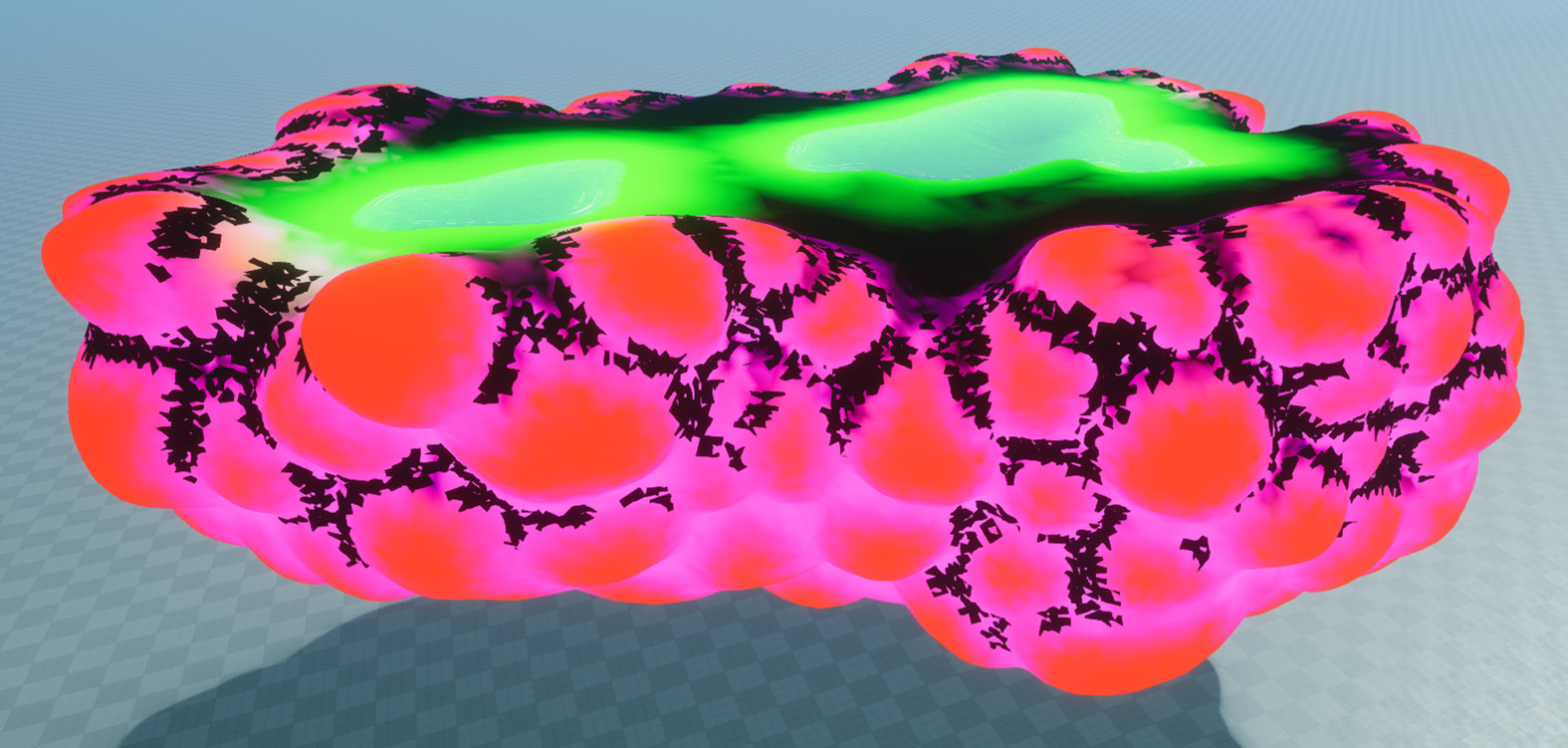

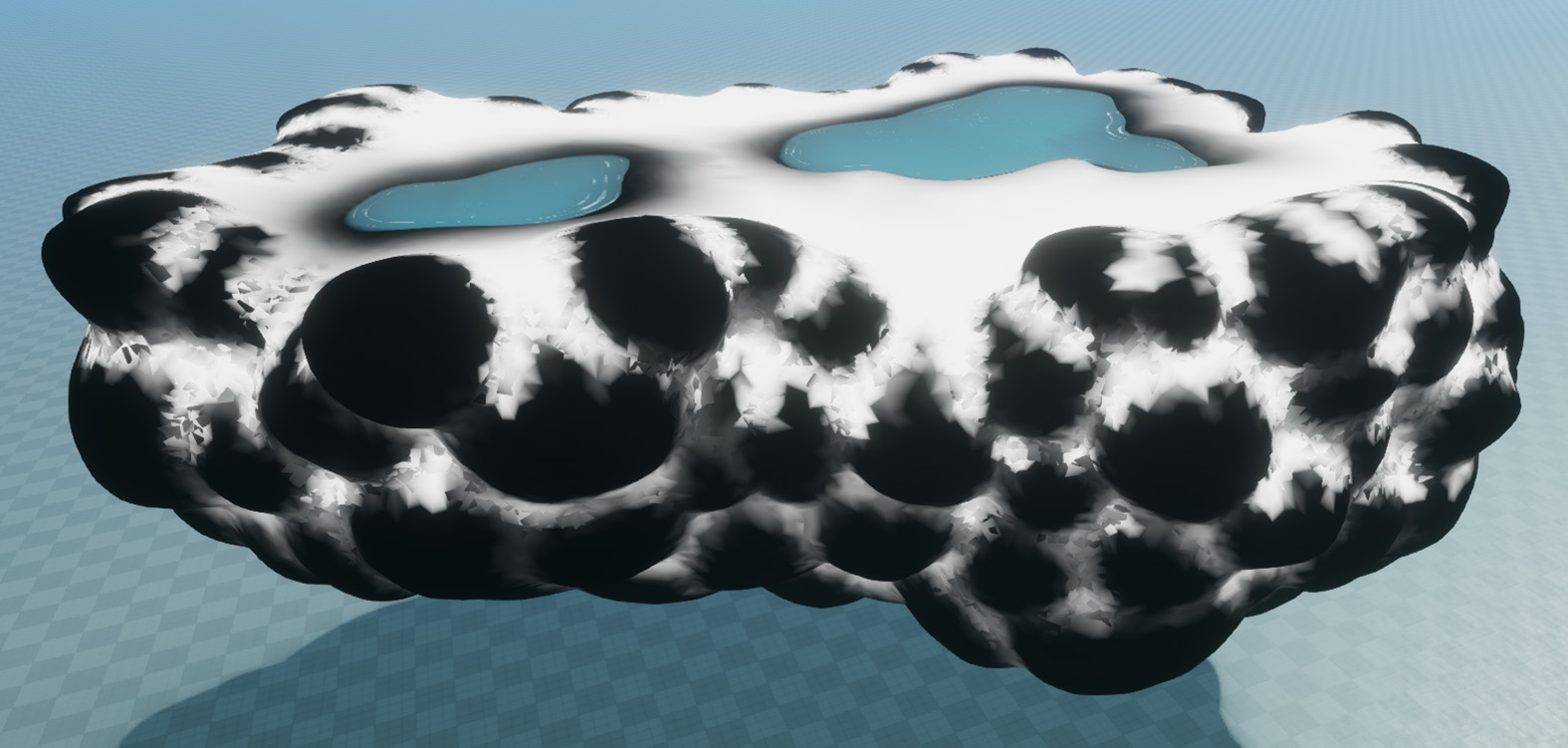

Vertex color also helps determine whether a surface is rock, sand, or grass (I can't just use a top dot product mask)

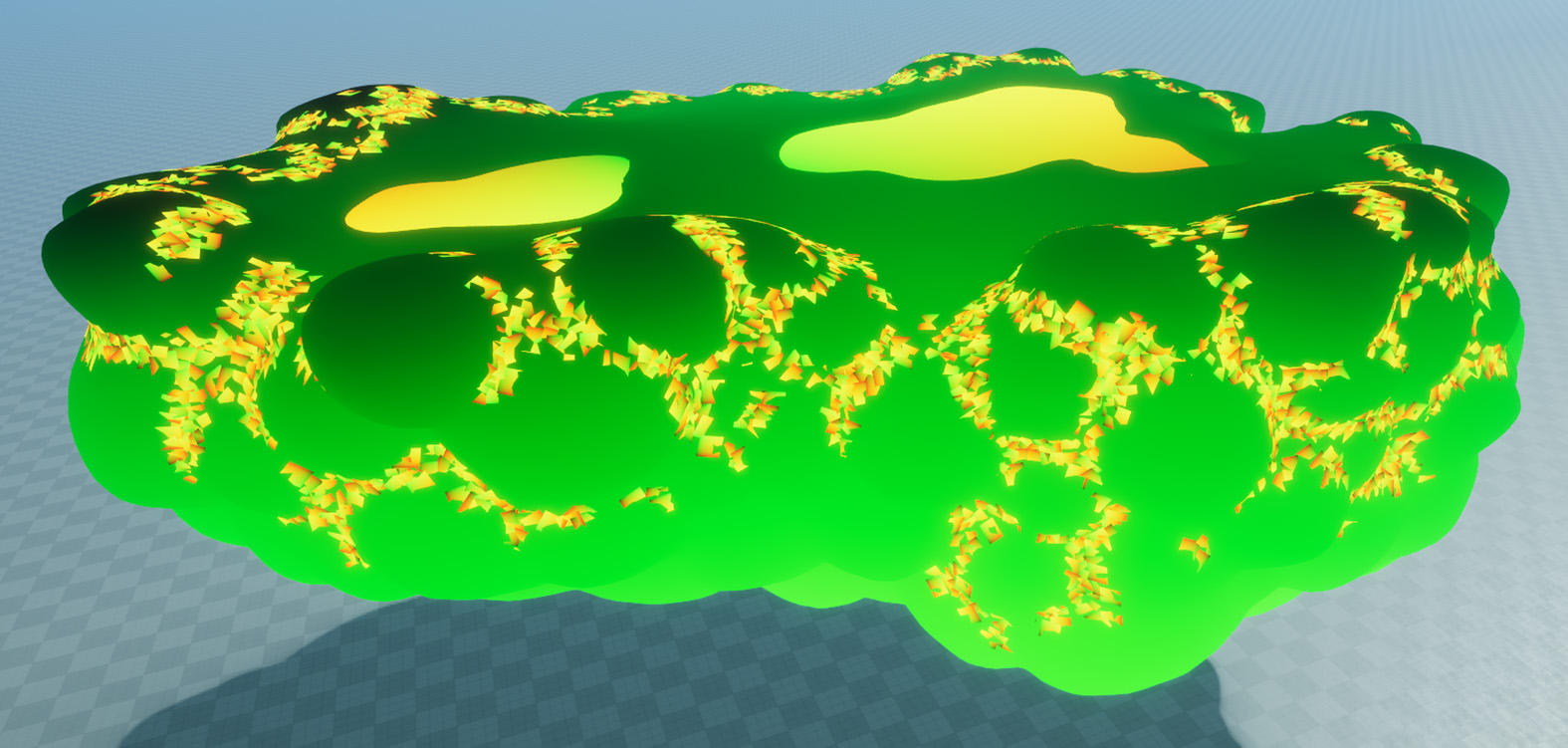

As the base island shader uses triplanar mapping for the rock layer and top-down projection for grass and sand, I baked the island "height" into the UVs for the fake gradient and shadow effect (which avoids using the BoundingBoxBased_0-1_UVW node)

---

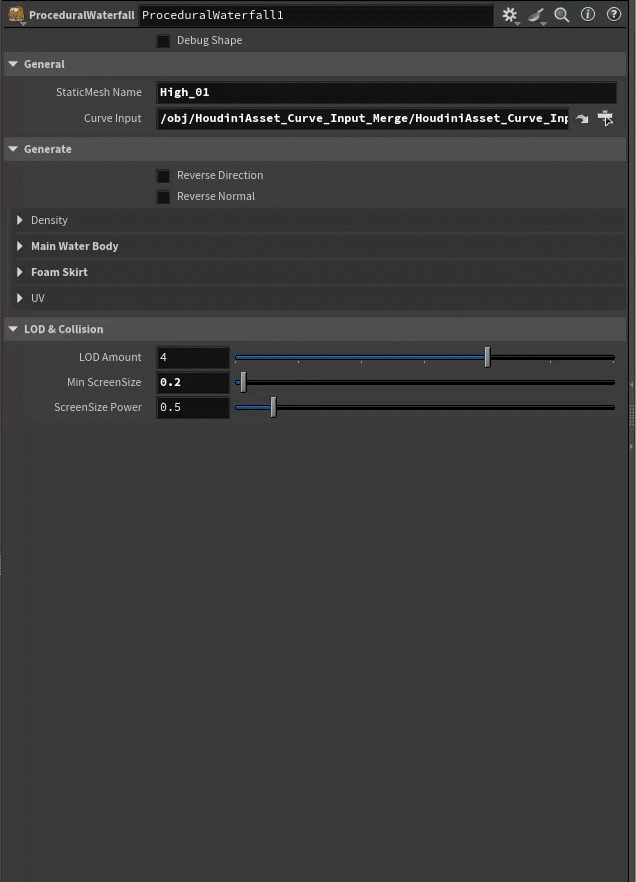

Waterfall

Just like floating islands, waterfalls are also 100% Houdini-generated and spline-driven, so they can be dynamically shaped to fit specific layouts
